YE2 Three-Phase Induction Motor Series

Introduction

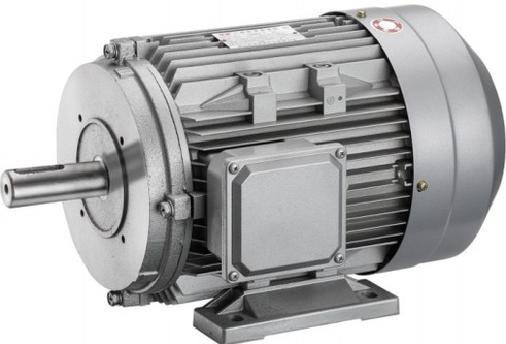

Product Overview

The YE2 series three-phase asynchronous motors comply with the latest national technical and energy efficiency standard GB/T 28575-2020.Featuring optimized high-efficiency design, the motors meet national requirements for energy conservation and consumption reduction in the manufacturing industry.

The mounting dimensions of YE2 series motors conform to the IEC 60034 standard. They boast advantages including reasonable structure, attractive appearance, high efficiency, low noise, high protection class and high insulation class.They are widely used to drive various general machinery such as fans, water pumps, machine tools, compressors and conveying machinery, and can also be applied in harsh environments including petroleum, chemical, steel and mining industries.

Operating Conditions

Ambient Temperature: -15℃ ≤ θ ≤ 40℃

Altitude: Not exceeding 1000 m

Rated Voltage: 380V; any voltage between 220V and 760V is available upon request

Rated Frequency: 50Hz, 60Hz

Degree of Protection: IP55

Insulation Class: Class F, Class H

Cooling Method: IC411

Duty Type: S1Connection: Star connection (Y) for motors 3kW and below; Delta connection (△) for motors 4kW and above

Appearance and mounting dimensions

Frame NO.	Pole	Mounting Dimension															Erall Dimension
Frame NO.	Pole	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	AB	AC	AD	HD	HF	L
80M	2,4,6,8	125	100	50	19	40	6	15.5	80	165	130	200	0	12	3.5	10	165	175	145	220	185	305
90S	2,4,6,8	140	100	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	260	195	360
90L	2,4,6,8	140	125	56	24	50	8	20	90	165	130	200	0	12	3.5	10	180	195	155	260	195	390
100L	2,4,6,8	160	140	63	28	60	8	24	100	215	180	250	0	15	4	12	205	215	180	270	245	435
112M	2,4,6,8	190	140	70	28	60	8	24	112	215	180	250	0	15	4	12	230	240	190	300	265	470
132S	2,4,6,8	216	140	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	510
132M	2,4,6,8	216	178	89	38	80	10	33	132	265	230	300	0	15	4	12	270	275	210	345	315	560
160M	2,4,6,8	254	210	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	670
160L	2,4,6,8	254	254	108	42	110	12	37	160	300	250	350	0	19	5	15	320	330	255	420	385	700
180M	2,4,6,8	279	241	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	740
180L	2,4,6,8	279	279	121	48	110	14	42.5	180	300	250	350	0	19	5	15	355	380	280	455	430	790
200L	2,4,6,8	318	305	133	55	110	16	49	200	350	300	400	0	19	5	19	395	420	305	505	480	790
225S	4,8	356	286	149	60	140	18	53	225	400	350	450	0	19	5	19	434	470	335	560	535	830
250M	2	356	311	149	55	110	16	49	225	400	350	450	0	19	5	19	435	470	335	560	535	825
250M	4,6,8	356	311	149	60	140	18	53	225	400	350	450	0	19	5	19	435	470	335	560	535	855
280S	2	406	349	168	60	140	18	53	250	500	450	550	0	19	5	24	490	510	370	615	595	910
280S	4,6,8	406	349	168	65	140	18	58	250	500	450	550	0	19	5	24	490	510	370	615	595	910
280S	2	457	368	190	65	140	18	58	280	500	450	550	0	19	5	24	550	580	410	680	650	985
280S	4,6,8	457	368	190	75	140	20	67.5	280	500	450	550	0	19	5	24	550	580	410	680	650	985
280M	2 4,6,8	457	419	190	65 75	140	18	58 67.5	280	500	450	550	0	19	5	24	550	580	410	680	650	1035 1035
280M	2 4,6,8	457	419	190	65 75	140	20	58 67.5	280	500	450	550	0	19	5	24	550	580	410	680	650	1035 1035

	Pole	Mounting Dimension											Erall Dimension
	Pole	D	E	F	G	M	N	P	R	S	T	迅教	AC	AD	HF	L
180M	2,4,6,8	48	110	14	42.5	300	250	350	0	19	5	4	380	280	500	800
180L	2,4,6,8	48	110	14	42.5	300	250	350	0	19	5	4	380	280	500	850
200L	2,4,6,8	55	110	16	49	350	300	400	0	19	5	4	420	305	550	860
225S	4,8	60	140	18	53	400	350	450	0	19	5	8	470	335	610	920
225M	2	55	110	16	49	400	350	450	0	19	5	8	470	335	610	915
225M	4,6,8	60	140	18	53	400	350	450	0	19	5	8	470	335	610	945
250M	2	60	140	16	53	500	450	550	0	19	5	8	510	370	650	1020
250M	4,6,8	65	140	18	58	500	450	550	0	19	5	8	510	370	650	1020
280S	2	65	140	18	58	500	450	550	0	19	5	8	580	410	720	1110
280S	4,6,8	75	140	18	67.5	500	450	550	0	19	5	8	580	410	720	1110
280M	2	65	140	18	58	500	450	550	0	19	5	8	580	410	720	1150
280M	4,6,8	75	140	20	67.5	500	450	550	0	19	5	8	580	410	720	1150

Conventional mounting type and suitable frame size are given in following table(with" √")

Frame

NO.

Basic Type

Derived Type

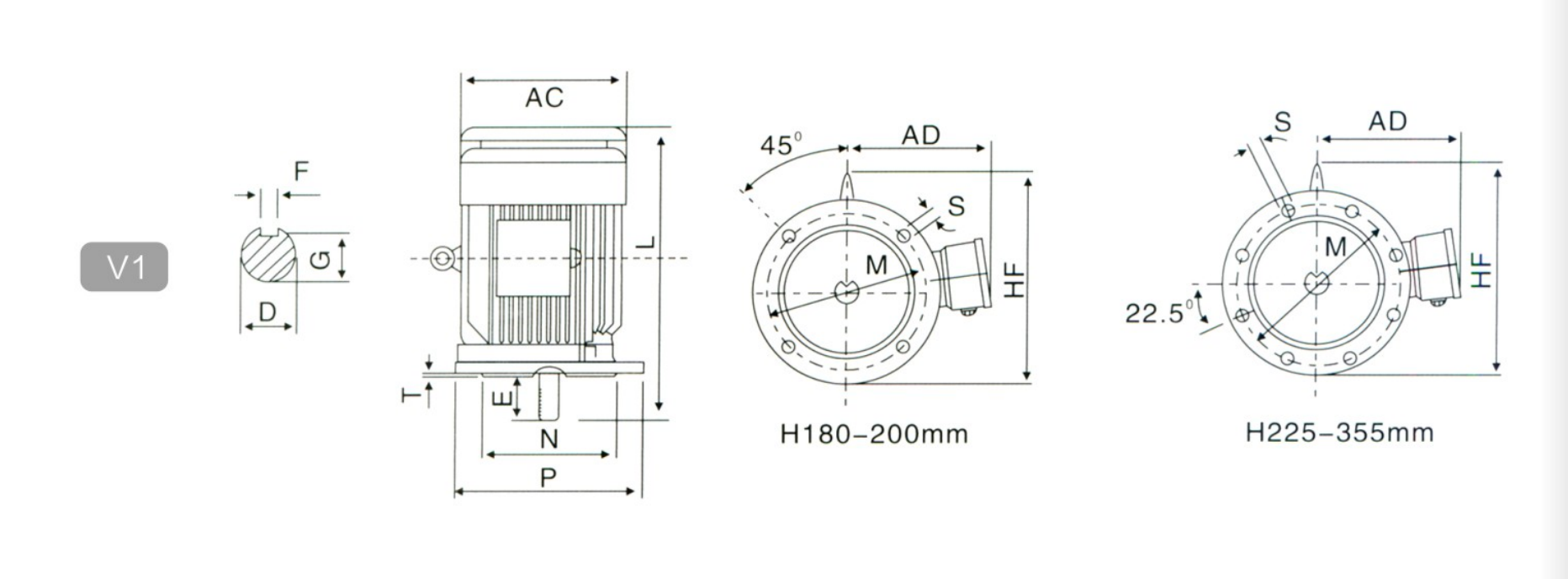

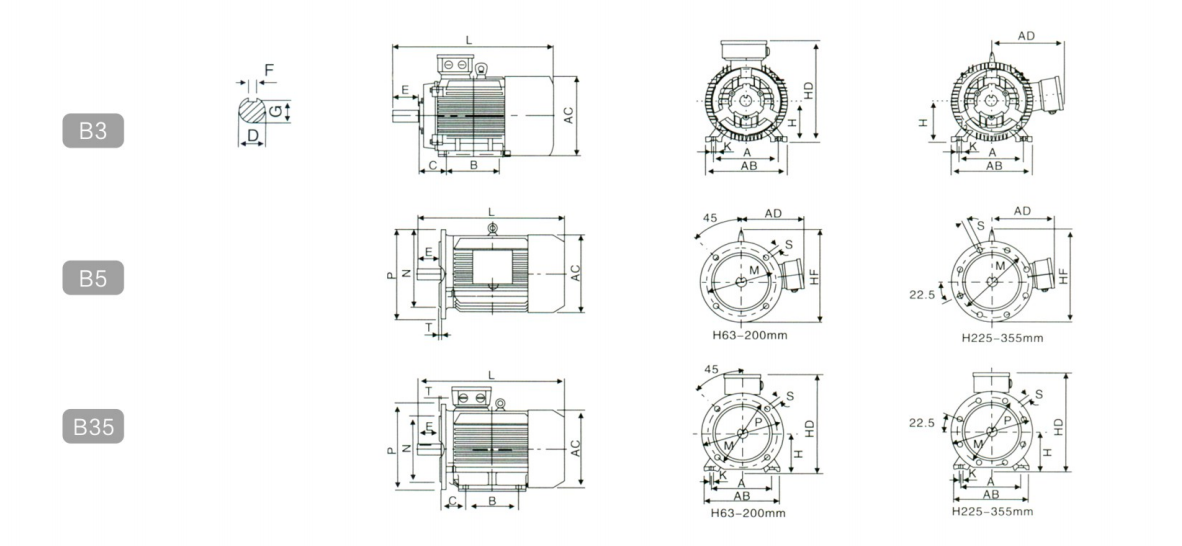

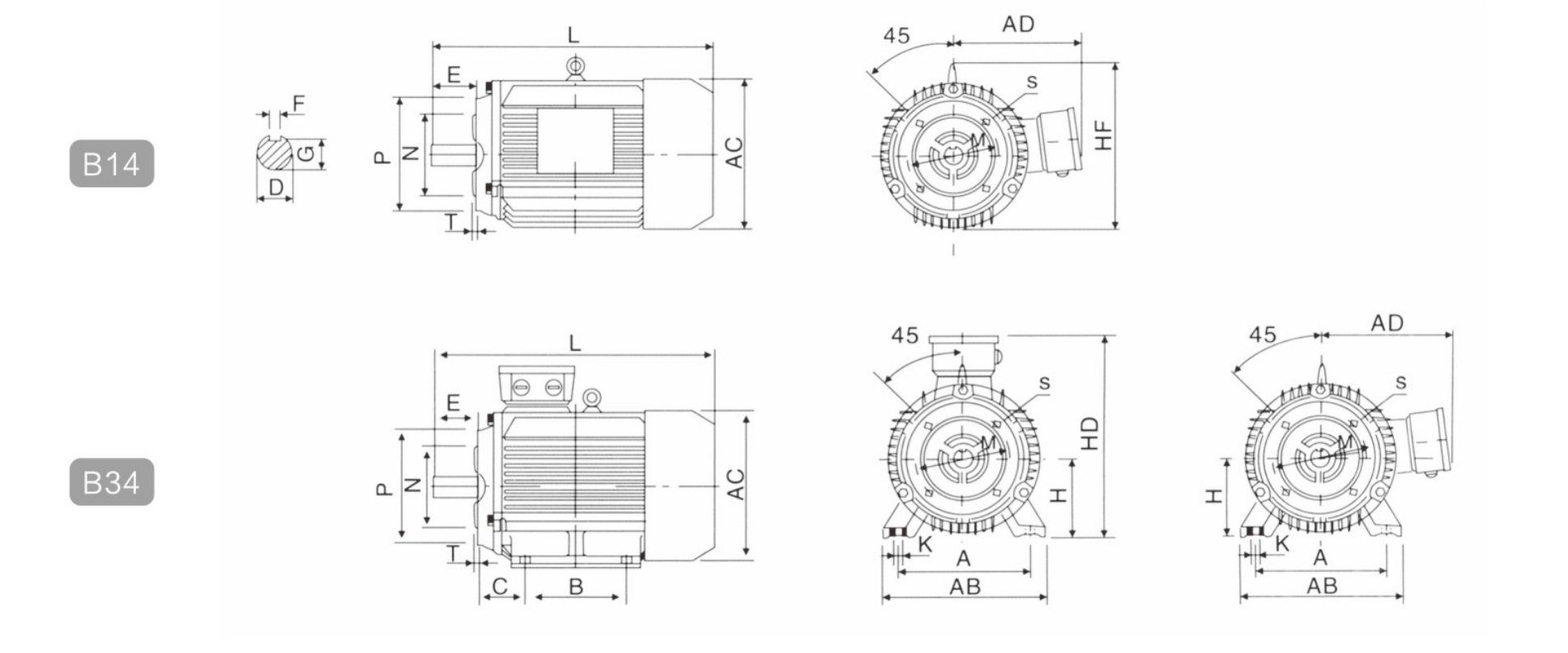

B35

V15

V36

B14

B34

V18

80~112

√

132~160

√

一

180~280

√

一

"√"indicates the type of structure that can be manufactured.

Appearance and mounting dimensions

Frame NO.	Pole	Mounting Dimension																Erall Dimension
Frame NO.	Pole	A	B	C	D	E	F	G	H	M	N	P	R	S	T	K	凸缘孔数 KBRBs	AB	AC	AD	HD	HF	L
80M	2,4,6,8	125	100	50	19	40	6	15.5	80	100	80	120	0	M6	3	10	4	165	175	145	220	185	305
90S	2,4,6,8	140	100	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	260	195	360
90L	2,4,6,8	140	125	56	24	50	8	20	90	115	95	140	0	M8	3	10	4	180	195	155	260	195	390
100L	2,4,6,8	160	140	63	28	60	8	24	100	130	110	160	0	M8	3.5	12	4	205	215	180	270	245	435
112M	2,4,6,8	190	140	70	28	60	8	24	112	130	110	160	0	M8	3.5	12	4	230	240	190	300	265	470
