Product Overview

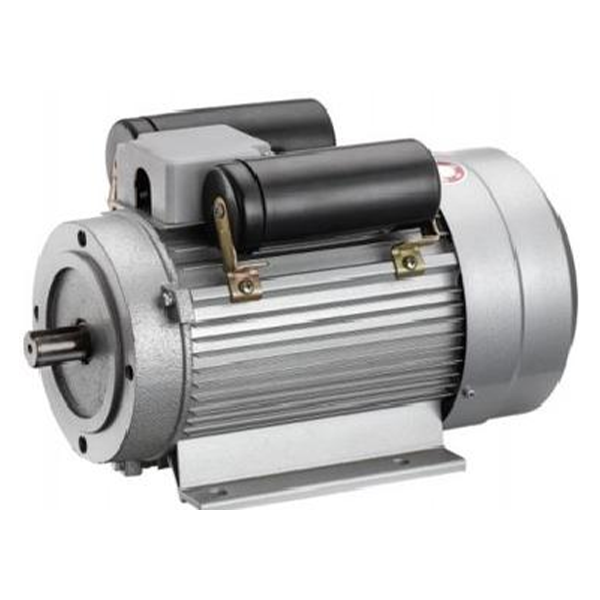

YL series single-phase dual-capacitor asynchronous motors are manufactured in accordance with national standards. They feature excellent starting and running performance, low noise, compact size, light weight and easy maintenance.
These motors are widely used in air compressors, water pumps, water machinery, refrigeration equipment, medical machinery, small machinery and other fields. They are especially suitable for occasions where only single-phase power supply is available.
Type |
Output |
voltage (V) |
Frequency Hz |
Current (A) |
Speed (r/min) |
Eff (%) |
Power factor |
Tstart/Tn |
IST/In |
Tmax/Tn |
|
kW |
HP |
||||||||||
YL711-2 |
0.37 |
0.5 |
220 |
50 |
2.46 |
2800 |
72 |
0.95 |
1.8 |
6 |
1.8 |
YL712-2 |
0.55 |
0.75 |
220 |
50 |
3.6 |
2800 |
73 |
0.95 |
1.8 |
6 |
1.8 |
YL801-2 |
0.75 |
1 |
220 |
50 |
4.85 |
2800 |
74 |
0.95 |
1.8 |
6 |
1.8 |
YL802-2 |
1.1 |
1.5 |
220 |
50 |
7.02 |
2800 |
75 |
0.95 |
1.8 |
6 |
1.8 |
YL90S-2 |
1.5 |
2 |
220 |
50 |
9.32 |
2830 |
77 |
0.95 |
1.8 |
6 |
1.8 |
YL90L-2 |
2.2 |
3 |
220 |
50 |
13.5 |
2830 |
78 |
0.95 |
1.8 |
6 |
1.8 |
YL100L-2 |
3 |
4 |
220 |
50 |
18.17 |
2870 |
79 |
0.95 |
1.8 |
6 |
1.8 |
YL112M-2 |
3.7 |
5 |
220 |
50 |
22.1 |
2890 |
80 |
0.95 |
1.8 |
6 |
1.8 |
YL711-4 |
0.25 |
0.34 |
220 |
50 |
1.79 |
1400 |
67 |
0.95 |
1.8 |
6 |
1.8 |
YL712-4 |
0.37 |
0.5 |
220 |
50 |
2.49 |
1400 |
71 |
0.95 |
1.8 |
6 |
1.8 |
YL801-4 |
0.55 |
0.75 |
220 |
50 |
3.65 |
1410 |
72 |
0.95 |
1.8 |
6 |
1.8 |
YL802-4 |
0.75 |
1 |
220 |
50 |
4.85 |
1410 |
74 |
0.95 |
1.8 |
6 |
1.8 |
YL90S-4 |
1.1 |
1.5 |
220 |
50 |
7.02 |
1430 |
75 |
0.95 |
1.8 |
6 |
1.8 |
YL90L-4 |
1.5 |
2 |
220 |
50 |
9.44 |
1430 |
76 |
0.95 |
1.8 |
6 |
1.8 |
YL100L1-4 |
2.2 |
3 |
220 |
50 |
13.5 |
1430 |
78 |
0.95 |
1.8 |
6 |
1.8 |
YL100L2-4 |
3 |
4 |
220 |
50 |
18.17 |
1430 |
79 |
0.95 |
1.8 |
6 |
1.8 |
YL112M-4 |
3.7 |
5 |
220 |
50 |
22.1 |
1450 |
80 |
0.95 |
1.8 |
6 |
1.8 |
|

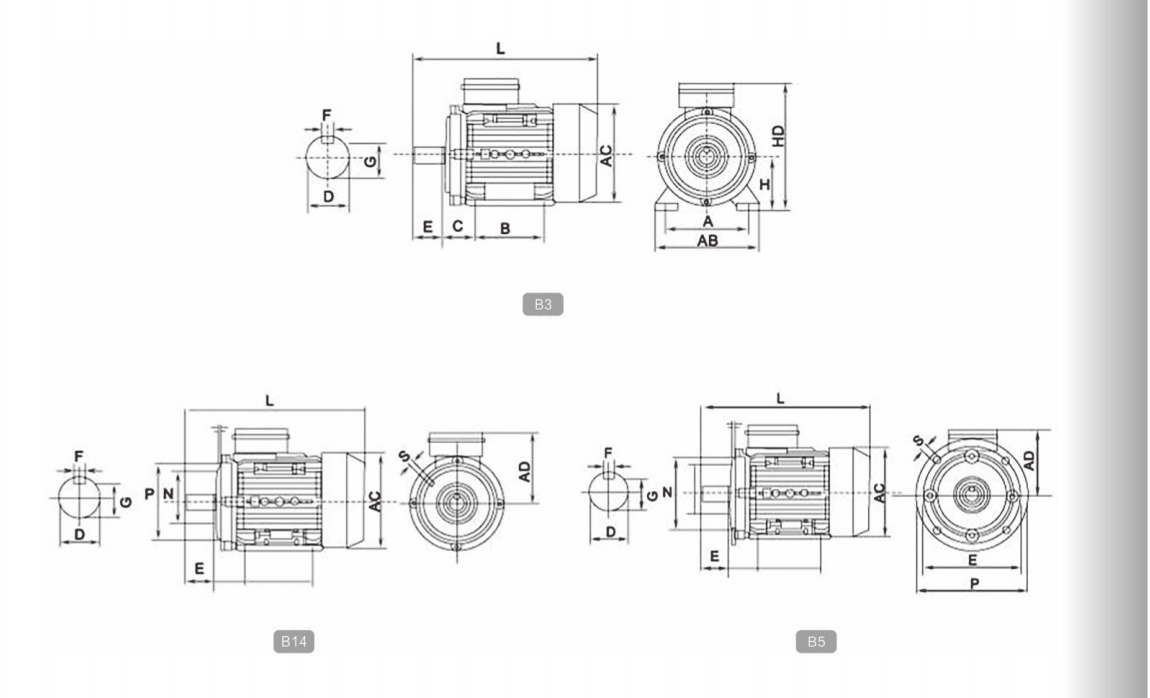

Frame size |
Mounting Dimensions(mm) |
Overall Dimensions(mm) |
||||||||||||||||||
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
AB |
AC |
AD |
HD |
L |
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
130 |
110 |
160 |
0 |
10 |
3.5 |
145 |
145 |
140 |
180 |
255 |
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
165 |
150 |
200 |
295 |
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
160 |
240 |
370 |
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
160 |
240 |
400 |
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
215 |
180 |
250 |
0 |
15 |
4 |
205 |
220 |
180 |
260 |
430 |
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
215 |
180 |
250 |
0 |
15 |
4 |
245 |
250 |
190 |
300 |
455 |
